Marine Parts

Flagship

Cablemaster

CM Series

The flagship in cable handling systems. It offers support for all cable lengths, pulling the cable both in and out automatically at the press of a button.

Any Cable Lengths Powered Payout Powered Retraction

Alternative

Cablemaster

CR Series

The versatile and compact alternative. It supports cables up to 50' in length and features automatic pull-in storage, while requiring manual pull-out.

Cables up to 50' Powered Retraction No Slip Rings

Model	Amperage	Cable OD	Drive	Powered	Max Length
CM Series
CM-4	16/30/32 amps	.5"-.8" (12-20mm)	12 or 24vdc	Payout & Retraction	Unlimited

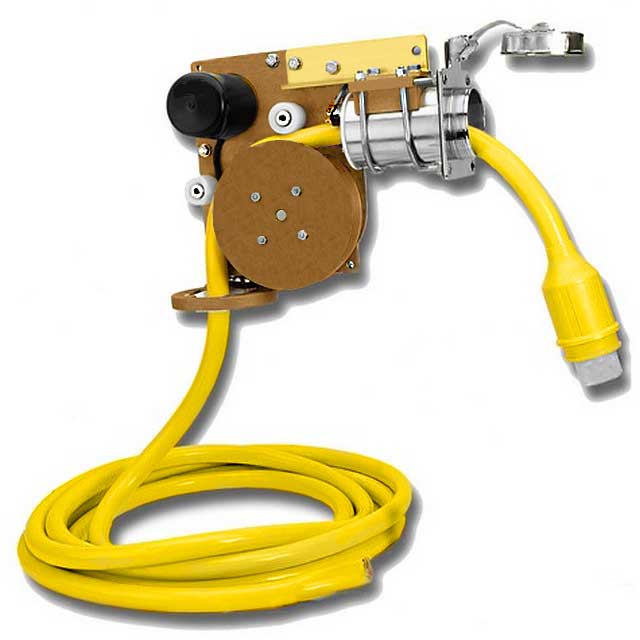

CM-7	50/63 amps	.8"-1.15" (20-29mm)	12 or 24vdc	Payout & Retraction	Unlimited

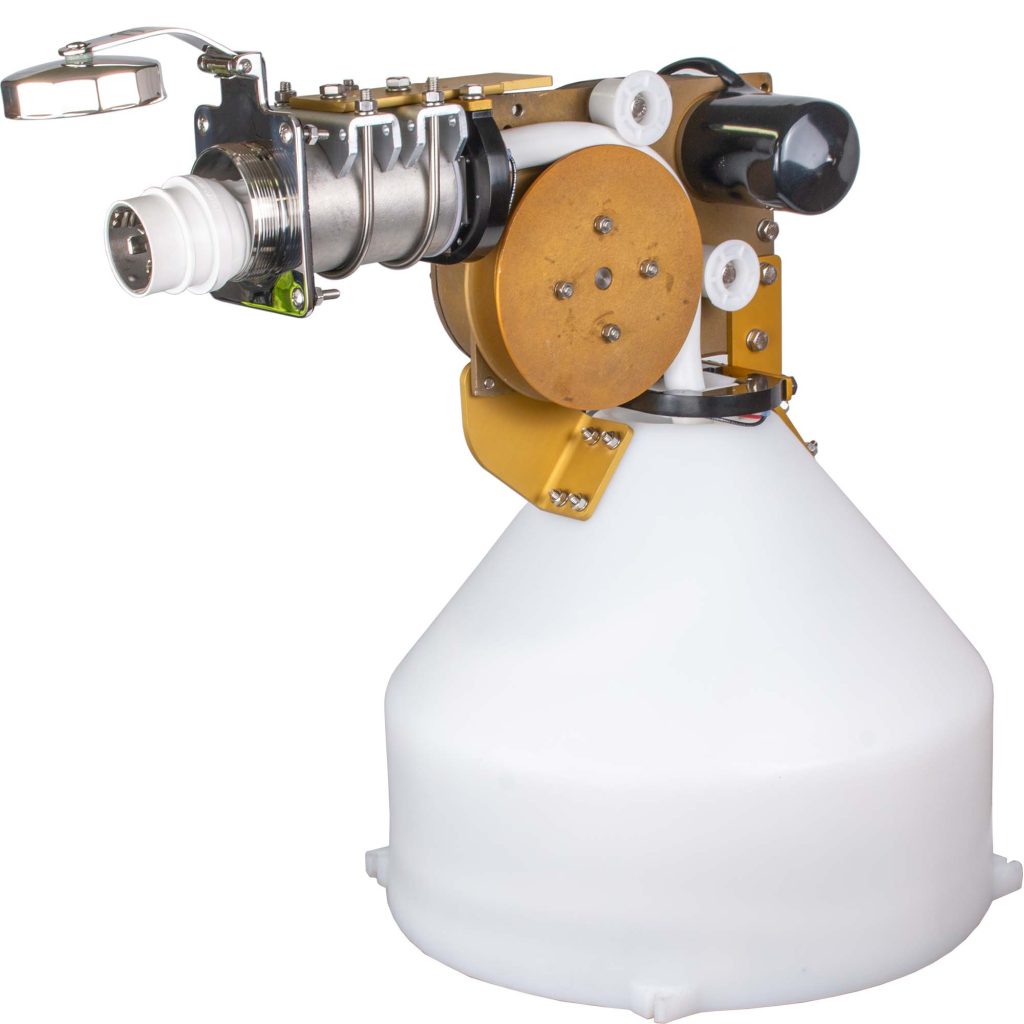

CM-7 Compact	50 amps	.8"-1.15" (20-29mm)	12 or 24vdc	Payout & Retraction	50’ [15.2m]

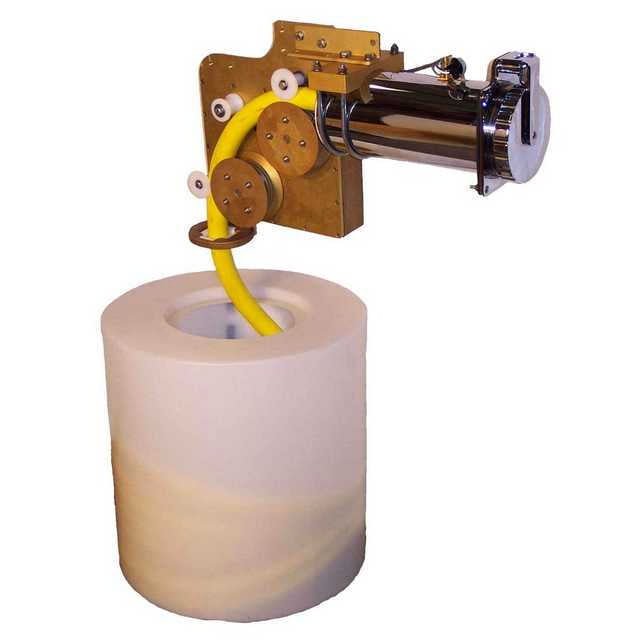

CM-8	100-125 amps	1.15"-1.5" (29-38mm)	24vdc	Payout & Retraction	Unlimited

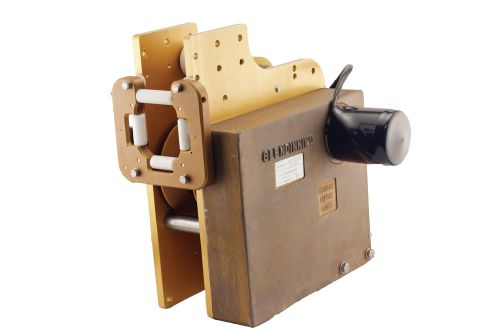

CM-9	150+ amps	1.5"-2.4" (38-70mm)	24vdc	Payout & Retraction	Unlimited
CR Series

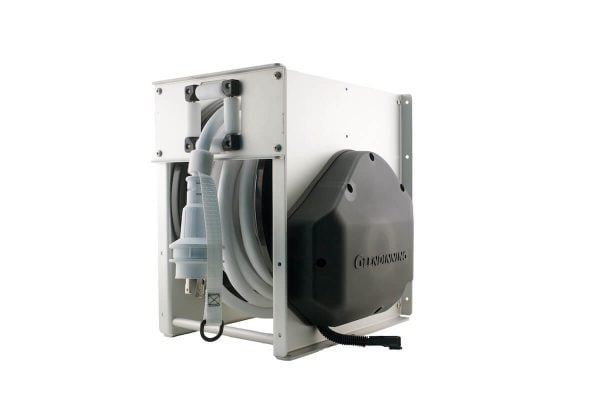

CRMA-16/30/32	16/30/30 amps	.5"-.8" (12-20mm)	12 or 24vdc	Retraction Only	50’ [15.2m]
CRMA-50/63	50 amps	.8"-1.15" (20-29mm)	12 or 24vdc	Retraction Only	50’ [15.2m]
